Product Details
＋

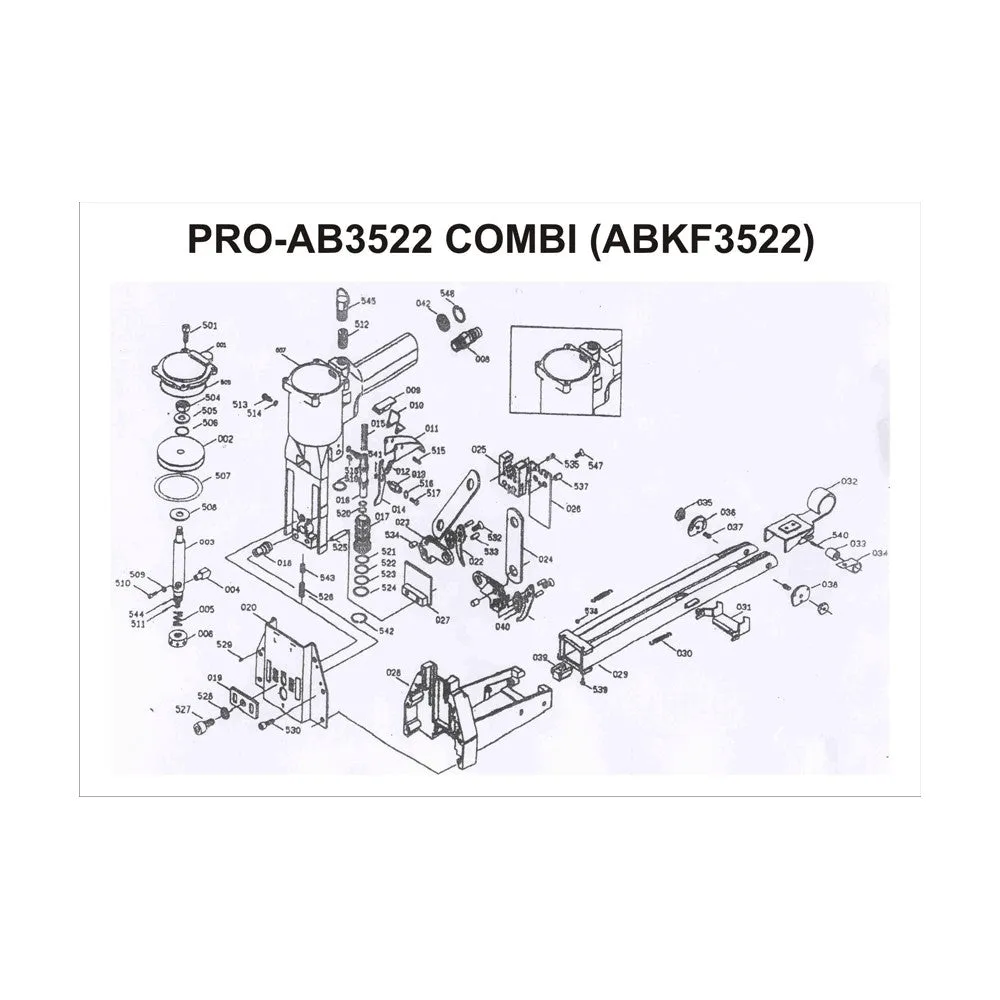

Blow Up
Spares
| TOOL MODEL: | PRO-AB3522COMBI | REV.1ST APRIL2023 | ||||||||
| SR | FMS | PART CODE | PART NAME | ALT CODE | SR | FMS | PART CODE | PART NAME | ALT CODE | |
| 1 | A0100110-37 | KAYMO CAP | A01200110-37 | 503 | FMS | BAB017537 | O-RING | |||
| 2 | A02800201 | PISTON | 504 | BAD02061 | HEX.NUT | |||||
| 3 | A02800301 | PISTON ROD | A02800302 | 505 | FMS | BAT03061 | WASHER | BAE06094 | ||
| 4 | A00100401 | BLOCK | 506 | FMS | BAB017076 | O-RING | ||||
| 5 | A00100501 | SPRING | 507 | FMS | BAB057476 | O-RING | ||||
| 6 | A00100601 | COLLAR | 508 | A00104101 | WASHER | |||||
| 7 | A01200403 | BODY | 509 | BAE01042 | SPRING WASHER | |||||
| 8 | A00100803 | AIR PLUG | S3120PMA | 510 | FMS | BAC0404062 | HEX.SOC.HD.BOLT | KM0406 | ||
| 9 | A00100902 | BLOCK | 511 | BAA025014 | SPRING PIN | |||||
| 10 | A00101001 | SPRING | 512 | BAC0312122 | HEX.SOC.HDLESS.BOLT | |||||
| 11 | A00101101-03 | KAYMO TRIGGER | 513 | A00104401 | TRIGGER SCREW | |||||
| 12 | FMS | A00101201 | SPRING | 514 | BAE01042 | SPRING WASHER | ||||
| 13 | A00101301 | ROD | 515 | BAA030020 | SPRING PIN | |||||
| 14 | A00101402 | TRIGGER'S CONTROL | 516 | BAE02042 | OUTSIDE TEETH WASHER | |||||
| 15 | A00101501 | SPRING | 517 | BAC0404102 | HEX.SOC.HD.BOLT | |||||
| 16 | A00101601 | VALVE | A00101603 | 518 | BAA030010 | SPRING PIN | ||||
| 17 | A00101702 | TUBE | 519 | FMS | BAB017124 | O-RING | ||||
| 18 | A00101801 | ADJUSTING ROD | 520 | FMS | BAB017076 | O-RING | ||||
| 19 | A00101901 | ADJUSTING PLATE | 521 | FMS | BAB016145 | O-RING | ||||
| 20 | A01102501 | FRONT PLATE | 522 | FMS | BAB016150 | O-RING | ||||
| 21 | A01200501 | RIGHT TEETH | 523 | FMS | BAB016155 | O-RING | ||||
| 22 | FMS | A01200601 | LEFT TEETH | 524 | FMS | BAB016160 | O-RING | |||
| 23 | A00102301 | TEETH SEAT | 525 | A00104701 | ROD | |||||
| 24 | A00102401 | PLATE | 526 | BAC0306142 | HEX.SOC.HDLESS.BOLT | |||||
| 25 |

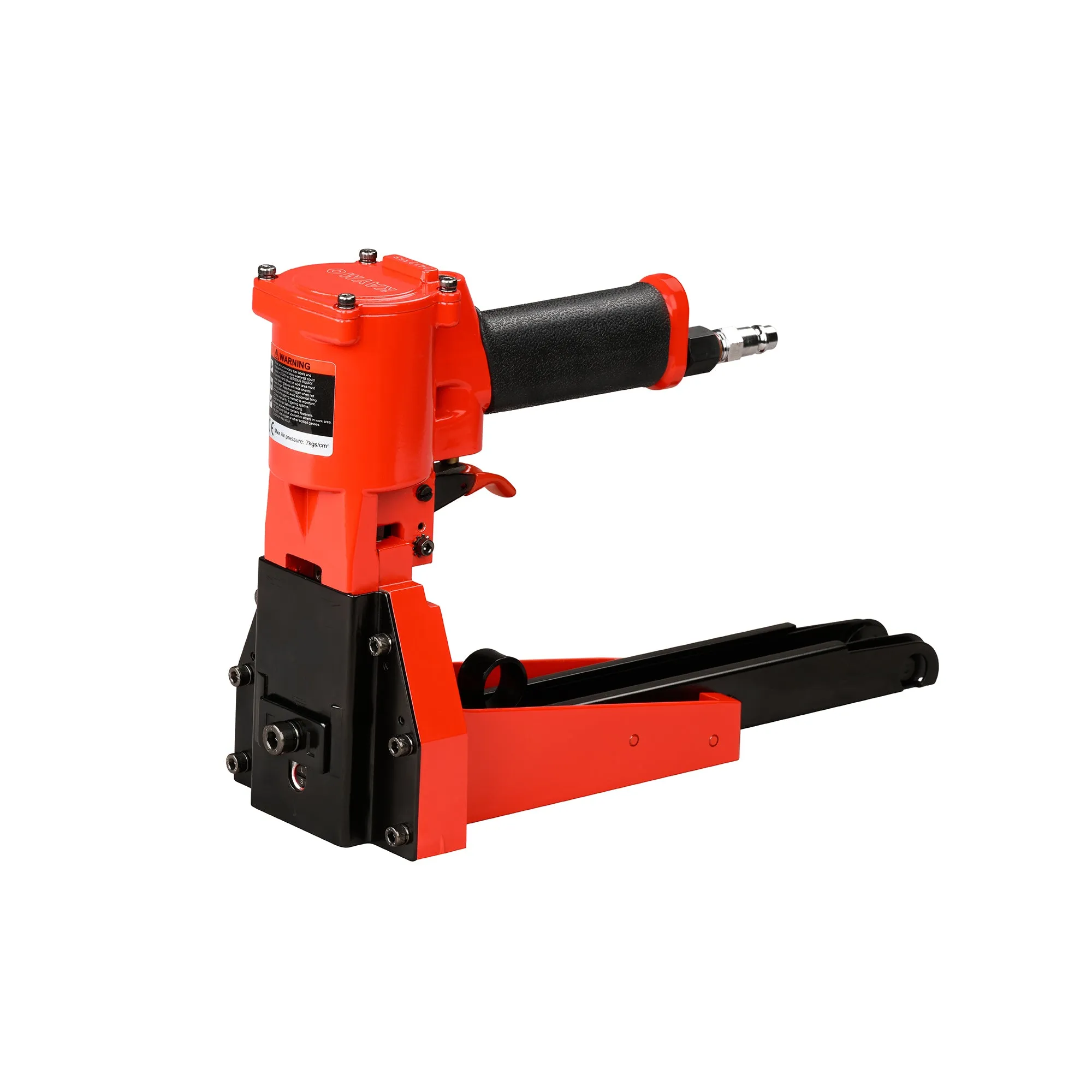

AIR BOXER KAYMO PRO-3522 COMBI 18/22$ 46.20 $ 26.10 Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
