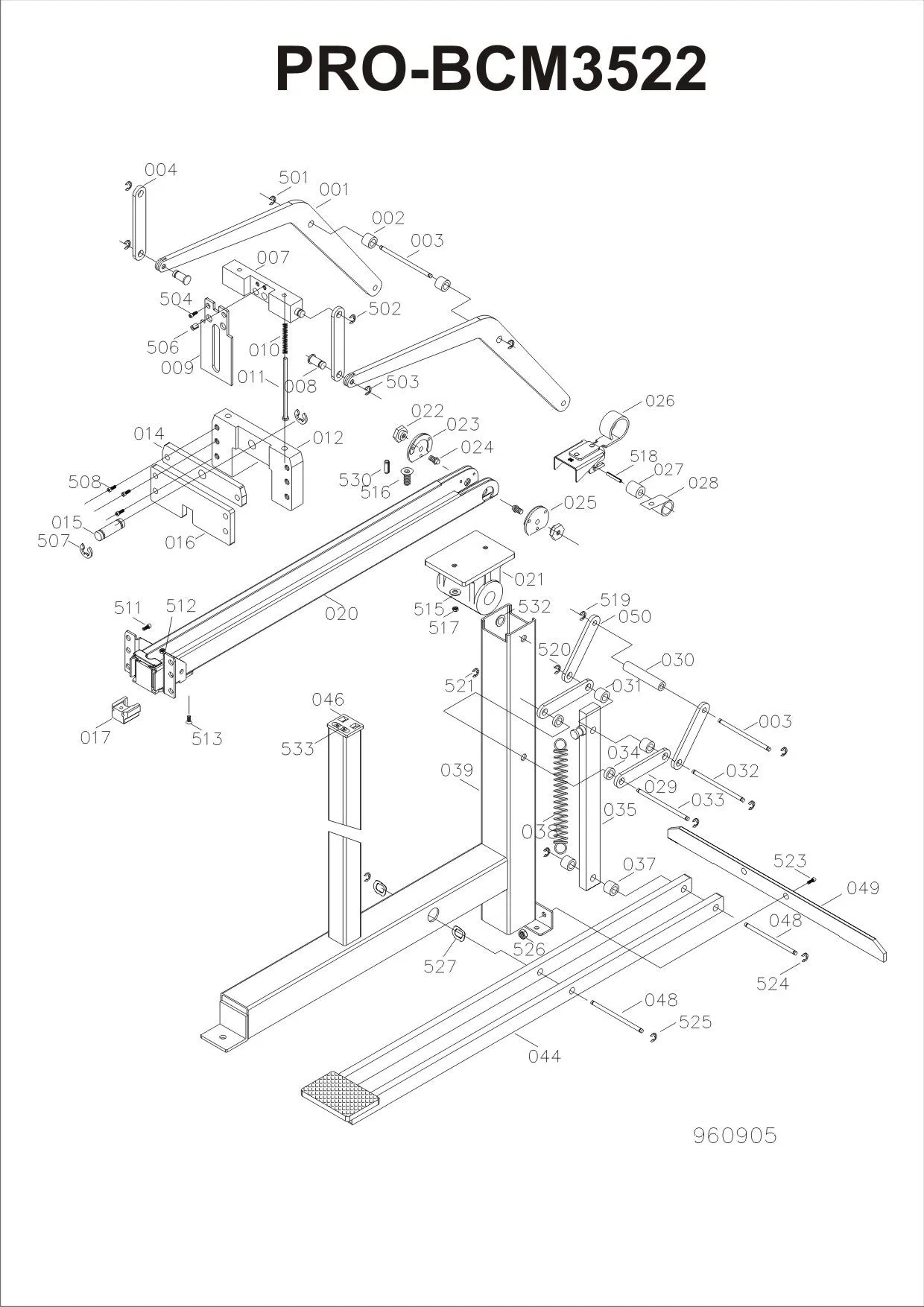

		TOOL NAME:	PRO-BCM3522					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		A00600102	LINK 1		39		A00603904	BODY SET
2		A00603401	TUBE		44		A00604402A	STEP BOARD SET
3		A00603201	SHAFT E		46		A00604606	MOLD
4		A00600401	LINK 2		48		A00604801	SHAFT G
7		A00600703	DRIVER SEAT		49		A00604901	BALANCER
8		A00600801	SHAFT C		50		A00602903	LINK 3-C
9		A00600904	DRIVER		501		BAF11002	E-RING
10		A00601002	SPRING		502		BAF10502	E-RING
11		A00601103A	SPRING SHAFT		503		BAF10502	E-RING
12		A00601202	MAGAZINE SEAT		504		BAC0604102	HEX.SOC.HD.BOLT
14		A00601405	COVER B		506		BAA060016	SPRING PIN
15		A00601502	SHAFT D		507		BAF10602	E-RING
16		A00601605	COVER A		508		BAC0605102	HEX.SOC.HD.BOLT
17		A00607501	BRACKET	A00607502	511		BAC0605082	HEX.SOC.HD.BOLT
20		CMB-S-35-P3-S	MAGAZINE UNIT		512		BAD01041	LOCK NUT
21		A00602101	BRACKET SET		513		BAC0204222	HEX.SOC.FLAT COUNTER SUNK HD.SCREW
22		A00607101	NUT		515		BAE01052	SPRING WASHER
23		A00103903A	RIGHT PUSHER GUIDE	A00103903@	516		BAC0205162	HEX.SOC.FLAT COUNTER SUNK HD.SCREW
24		A00103203	ROD		517		BAD02051	LOCK NUT
25		A00103904A	LEFT PUSHER GUIDE	A00103904@	518		BAA040016	SPRING PIN
26		A00103709A	PUSHER SET	A00103709@	519		BAF11002	E-RING
27		A00103501	ROLLER		520		BAF11002	E-RING
28		A00602801	SPRING		521		BAF11002	E-RING
29		A00602901	LINK 3-A		523		BAC0408202	HEX.SOC.HD.BOLT
30		A00603002	TUBE		524		BAF11002	E-RING
31		A00603701	TUBE		525		BAF11002	E-RING
32		A00603202	SHAFT E		526		BAD01081	LOCK NUT
33		A00603302	SHAFT F		527		BAE03122	WAVE WASHER
34		A00603402	TUBE		530		BAA040008	SPRING PIN
35		A00603503A	LINK A SET		532		BAE03162	WAVE WASHER
37		A00603701	TUBE		533		BAC0904082	HEX.SOC.ROUND.HD.SCREW
38		A00603801	SPRING

	To close the bottom of corrugated cartons
	Onsite carton closing
